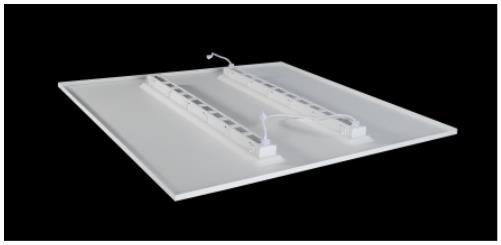

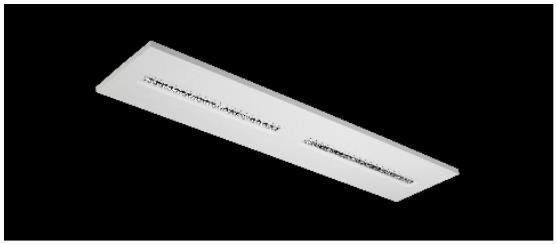

LED Modular Ceiling Panel
LED Modular Ceiling Panel LED Modular Ceiling Panel LED Modular Ceiling Panel
Product name : LED Modular Ceiling Panel
Item : EK-LED Modular Ceiling Panel-001
Details :
         LED moudle panel light Power: 30W/ 40W

Input voltage: AC220- 240V, 50/ 60Hz LED chips: Edison 2835SMD

 Driver: Philips/ Lifud/ Tridonic driver for choosingCCT：2700K- 6500K

Ra> 75, PF> 0. 9

 Lumen: 30W: 4500- 4700lm, 40W: 6000- 6200lmUGR< 16 Size:

 595x595x38mm, 620x620x38mm, 295x1195x38mmMaterial: Aluminum

 Working temperature: - 25℃ to + 65℃ Life time: 50000H ( 70% of the lumious flux at 50000h), 3- 5 years warranty
